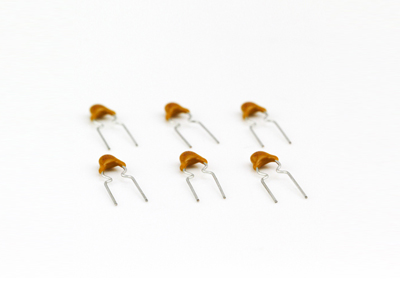

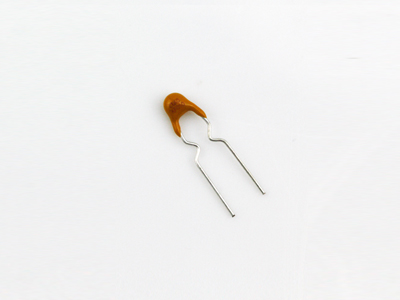

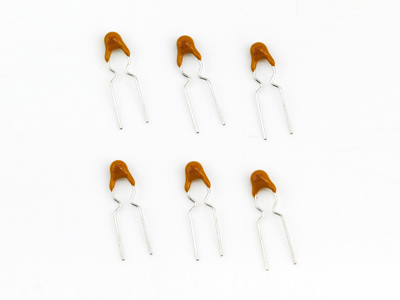

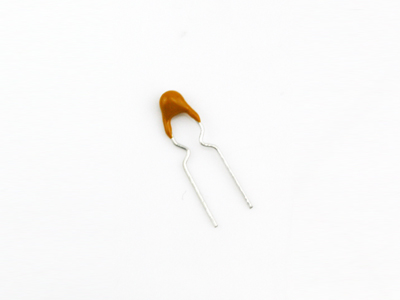

A60 PPTC Resettable Fuse
The JDTFUSE A60 Series is designed to provideovercurrent protection to 60Vdc maximum voltage witha maximum 40A short circuit rating.
- Brand： JDT FUSE
- Classification： DIP PTC
- Voltage： 60V
- Current： 0.05A-5A
Electrical properties
Model | Vmax | Imax | Ihold | Itrip | Pdtyp. | Maximum Time To Trip | Rimin | Rimax | R1max | |
(Vdc) | (A) | (A) | (A) | (W) | Current(A) | Time(Sec) | (Ω) | (Ω) | (Ω) | |
| A60-003 | 60 | 40 | 0.03 | 0.06 | 0.32 | 0.15 | 4.5 | 33 | 65.0 | 100 |
| A60-005 | 60 | 40 | 0.05 | 0.10 | 0.30 | 0.25 | 5.0 | 7.30 | 26.0 | 40.0 |
A60-010 | 60 | 40 | 0.10 | 0.20 | 0.51 | 0.50 | 8.0 | 2.50 | 7.50 | 12.0 |
A60-017 | 60 | 40 | 0.17 | 0.34 | 0.60 | 0.85 | 5.0 | 2.00 | 5.21 | 8.00 |
A60-020 | 60 | 40 | 0.20 | 0.40 | 0.52 | 1.00 | 2.2 | 1.50 | 2.84 | 4.49 |
A60-025 | 60 | 40 | 0.25 | 0.50 | 0.52 | 1.25 | 2.5 | 1.00 | 1.95 | 3.00 |
A60-030 | 60 | 40 | 0.30 | 0.60 | 0.59 | 1.50 | 3.0 | 0.76 | 1.38 | 2.20 |
A60-040 | 60 | 40 | 0.40 | 0.80 | 0.66 | 2.00 | 3.8 | 0.45 | 0.88 | 1.40 |
A60-050 | 60 | 40 | 0.50 | 1.00 | 0.80 | 2.50 | 4.0 | 0.40 | 0.79 | 1.20 |
A60-065 | 60 | 40 | 0.65 | 1.30 | 0.90 | 3.25 | 5.3 | 0.27 | 0.50 | 0.74 |
A60-075 | 60 | 40 | 0.75 | 1.50 | 0.95 | 3.75 | 6.3 | 0.18 | 0.42 | 0.62 |
A60-090 | 60 | 40 | 0.90 | 1.80 | 1.00 | 4.50 | 7.2 | 0.14 | 0.33 | 0.49 |
A60-110 | 60 | 40 | 1.10 | 2.20 | 1.51 | 5.50 | 8.2 | 0.14 | 0.27 | 0.40 |
A60-135 | 60 | 40 | 1.35 | 2.70 | 1.71 | 6.75 | 9.6 | 0.12 | 0.21 | 0.32 |
A60-160 | 60 | 40 | 1.60 | 3.20 | 1.98 | 8.00 | 11.4 | 0.09 | 0.16 | 0.24 |
A60-185 | 60 | 40 | 1.85 | 3.70 | 2.10 | 9.25 | 12.6 | 0.08 | 0.14 | 0.21 |
A60-250 | 60 | 40 | 2.50 | 5.00 | 2.50 | 12.50 | 15.6 | 0.05 | 0.10 | 0.15 |
A60-300 | 60 | 40 | 3.00 | 6.00 | 2.80 | 15.00 | 19.8 | 0.04 | 0.08 | 0.12 |
A60-375 | 60 | 40 | 3.75 | 7.50 | 3.20 | 18.75 | 24.0 | 0.03 | 0.06 | 0.10 |
V max = 元件在額定電流下能承受的最大電壓.
I max =元件在額定電壓下能承受的最大電流.
I hold = 在25℃靜止空氣環(huán)境中,產品不動作的最大電流.
I trip = 在25℃靜止空氣環(huán)境中,最小動作電流.
Pd =在25℃靜止空氣環(huán)境中,產品動作狀態(tài)下的消耗功率. （推薦閱讀：A72系列 |自恢復保險絲）
Ri min/max =25℃溫度條件下的初始阻值(焊接前).
R1max = 25℃溫度條件下,焊接一小時後的最大阻值.
注意 : 超出指定額定值的操作，可能會導致?lián)p傷和可能產生電弧和火焰.
JDTFUSE | Cross Reference | |||
Tyco / Raychem | Bourns / Multifuse? | Polytronics / EVERFUSE? | Littelfuse | |
A60-010 | RXEF010 | MF-R010 | RLD60P010UF | 60R010 |
A60-017 | RXEF017 | MF-R017 | RLD60P017UF | 60R017 |
A60-020 | RXEF020 | MF-R020 | RLD60P020UF | 60R020 |
A60-025 | RXEF025 | MF-R025 | RLD60P025UF | 60R025 |
A60-030 | RXEF030 | MF-R030 | RLD60P030UF | 60R030 |
A60-040 | RXEF040 | MF-R040 | RLD60P040UF | 60R040 |
A60-050 | RXEF050 | MF-R050 | RLD60P050UF | 60R050 |
A60-065 | RXEF065 | MF-R065 | RLD60P065UF | 60R065 |
A60-075 | RXEF075 | MF-R075 | RLD60P075UF | 60R075 |
A60-090 | RXEF090 | MF-R090 | RLD60P090UF | 60R090 |
A60-110 | RXEF110 | MF-RX110 | RLD60P110UF | 60R110 |
A60-135 | RXEF135 | MF-RX135 | RLD60P135UF | 60R135 |
A60-160 | RXEF160 | MF-RX160 | RLD60P160UF | 60R160 |
A60-185 | RXEF185 | MF-RX185 | RLD60P185UF | 60R185 |
A60-250 | RXEF250 | MF-RX250 | RLD60P250UF | 60R250 |
A60-300 | RXEF300 | MF-RX300 | RLD60P300UF | 60R300 |
A60-375 | RXEF375 | MF-RX375 | RLD60P375UF | 60R375 |

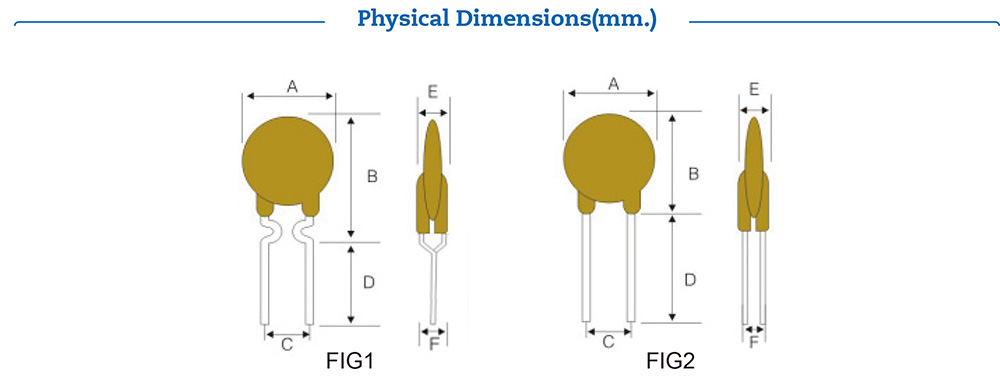

Model | A | B | C | D | E | F | FIG |
Max. | Max. | Max. | Min. | Max. | Typ. | ||
A60-003 | 7.4 | 11.1 | 5.1±0.5 | 7.6 | 3.1 | 1.1 | 2 |
A60-005 | 7.4 | 11.1 | 5.1±0.5 | 7.6 | 3.1 | 1.1 | 2 |
A60-010 | 7.4 | 11.6 | 5.1±0.5 | 7.6 | 3.1 | 1.1 | 1 |
A60-017 | 7.4 | 12.7 | 5.1±0.5 | 7.6 | 3.1 | 1.1 | 1 |
A60-020 | 7.4 | 12.7 | 5.1±0.5 | 7.6 | 3.1 | 1.1 | 1 |
A60-025 | 7.4 | 12.7 | 5.1±0.5 | 7.6 | 3.1 | 1.1 | 1 |
A60-030 | 7.4 | 13.0 | 5.1±0.5 | 7.6 | 3.1 | 1.1 | 1 |
A60-040 | 7.8 | 16.2 | 5.1±0.5 | 7.6 | 3.1 | 1.2 | 1 |
A60-050 | 7.9 | 16.2 | 5.1±0.5 | 7.6 | 3.1 | 1.2 | 1 |
A60-065 | 9.7 | 17.8 | 5.1±0.5 | 7.6 | 3.1 | 1.5 | 1 |
A60-075 | 10.4 | 18.4 | 5.1±0.5 | 7.6 | 3.1 | 1.5 | 1 |
A60-090 | 11.7 | 18.4 | 5.1±0.5 | 7.6 | 3.1 | 1.5 | 1 |
A60-110 | 13.0 | 18.0 | 5.1±0.5 | 7.6 | 3.1 | 1.2 | 2 |
A60-135 | 14.5 | 19.6 | 5.1±0.5 | 7.6 | 3.1 | 1.2 | 2 |
A60-160 | 16.3 | 21.3 | 5.1±0.5 | 7.6 | 3.1 | 1.5 | 2 |
A60-185 | 17.8 | 22.9 | 5.1±0.5 | 7.6 | 3.1 | 1.5 | 2 |
A60-250 | 21.3 | 26.4 | 10.2±0.5 | 7.6 | 3.1 | 1.7 | 2 |
A60-300 | 23.9 | 28.6 | 10.2±0.5 | 7.6 | 3.1 | 2.0 | 2 |
A60-375 | 28.5 | 33.5 | 10.2±0.5 | 7.6 | 3.1 | 2.0 | 2 |
RoHS
