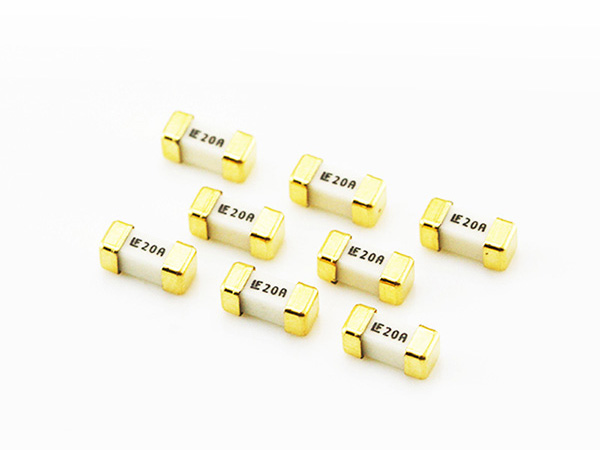

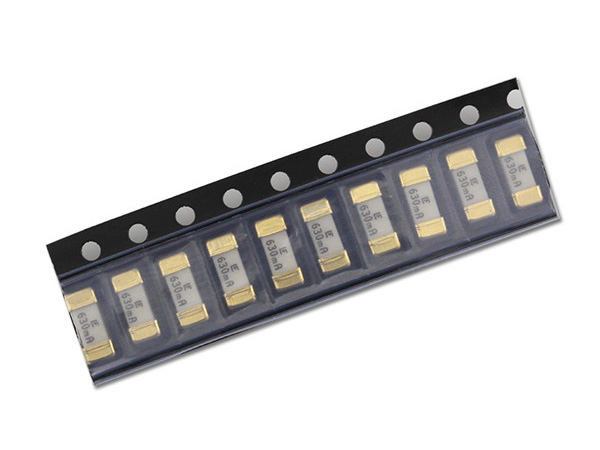

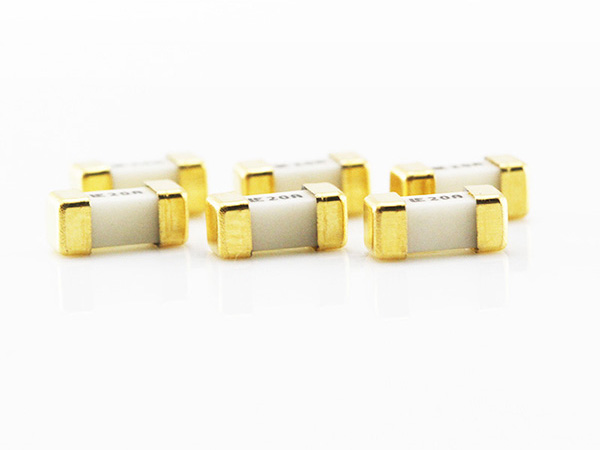

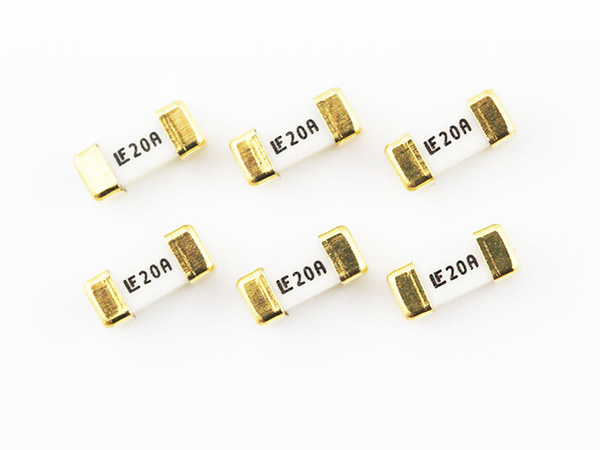

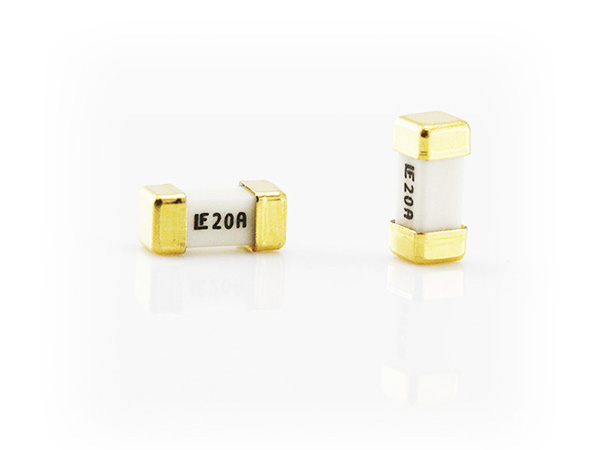

0451 series Nano2 SMF Fuse
The Nano2? SMF Fuse is a very small, Wire-in-Air (WIA).
- Brand： Littelfuse
- Classification： SMD Fuse
- Voltage： 65V，125V
- Current： 0.062A-15A
Description:
The Nano2? SMF Fuse is a very small, Wire-in-Air (WIA) square shape surface mount fuse that was designed for secondary side circuit over-current protection applications.
These fuses are designed for PCB using surface mount technology.
Features:
? Very fast-acting | ? Small size | ? Wide range of current rating available (0.062A to 20A) |
? Wide operating temperature range | ? Low temperature rerating | ? RoHS compliant and Halogen Free |
Applications:
| ? Notebook PC | ? LCD/PDP TV | LCD monitor |
| ? LCD/PDP pane | ? LCD backlight inverter | ? Portable DVD player |
| ? Power supply | ? Networking | ? PC server |
| ? Cooling fan system | ? Storage system | ? Telecom system |
| ? Wireless basestation | ? White goods | ? Game console |
| ? Office Automation equipment | ? Battery charging circuit protection | ? Industrial equipment |
Part Number | Ampere Rating | Amp Code | Max Voltage Rating | Interrupting Rating | Nominal Code Resistance | Nominal Melting I2t |
0451.062MRL | 0.062 | .062 | 125 | 50A @125VAC/VDC 300A @32 VDC PSE:100A @100VAC | 5.5000 | 0.00019 |
0451.080MRL | 0.080 | .080 | 125 | 4.0500 | 0.00033 | |
0451.100MRL | 0.100 | .100 | 125 | 3.1000 | 0.00138 | |
0451.125MRL | 0.125 | .125 | 125 | 1.7000 | 0.00286 | |
0451.160MRL | 0.160 | .160 | 125 | 1.2157 | 0.0048 | |
0451.200MRL | 0.200 | .200 | 125 | 0.8372 | 0.0089 | |
0451.250MRL | 0.250 | .250 | 125 | 0.5765 | 0.0158 | |
0451.315MRL | 0.315 | .315 | 125 | 0.3918 | 0.0311 | |
0451.375MRL | 0.375 | .375 | 125 | 0.4541 | 0.0442 | |
0451.400MRL | 0.400 | .400 | 125 | 0.4233 | 0.0551 | |
0451.500MRL | 0.500 | .500 | 125 | 0.3046 | 0.0824 | |
0451.630MRL | 0.630 | .630 | 125 | 0.2022 | 0.1381 | |
0451.750MRL | 0.750 | .750 | 125 | 0.1444 | 0.2143 | |
0451.800MRL | 0.800 | .800 | 125 | 0.1355 | 0.2654 | |
0451001.MRL | 1.00 | 001. | 125 | 0.0780 | 0.6029 | |
045101.25MRL | 1.25 | 1.25 | 125 | 0.0780 | 0.664 | |
045101.5MRL | 1.50 | 01.5 | 125 | 0.0630 | 0.853 | |
045101.6MRL | 1.60 | 01.6 | 125 | 0.0580 | 1.060 | |
0451002.MRL | 2.00 | 002. | 125 | 50A@125VAC/VDC 10,000A@75VDC 300A @32VDC PSE:100A@100VAC | 0.0367 | 0.530 |
045102.5MRL | 2.50 | 02.5 | 125 | 0.0286 | 1.029 | |
0451003.MRL | 3.00 | 003. | 125 | 0.0227 | 1.650 | |
045103.15MRL | 3.15 | 3.15 | 125 | 0.0215 | 1.920 | |
045103.5MRL | 3.50 | 03.5 | 125 | 0.0200 | 2.469 | |
0451004.MRL | 4.00 | 004. | 125 | 0.0160 | 3.152 | |
0451005.MRL | 5.00 | 005. | 125 | 0.0125 | 5.566 | |
045106.3MRL | 6.30 | 06.3 | 125 | 50A@125VAC/VDC 400A@32VDC PSE:100A@100VAC | 0.0096 | 9.170 |
0451007.MRL | 7.00 | 007. | 125 | 0.0090 | 10.32 | |
0451008.MRL | 8.00 | 008. | 125 | 0.0077 | 20.23 | |
0451010.MRL | 10.0 | 010. | 125 | 35A @125VAC | 0.0056 | 26.46 |
0451012.MRL | 12.0 | 012. | 65 | 150A @65VDC | 0.0049 | 47.97 |
0451015.MRL | 15.0 | 015. | 65 | 0.0037 | 97.82 | |
0451020.MRL | 20.0 | 020. | 65 | 0.00244 | 154 |
