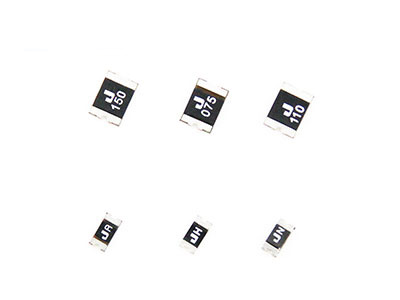

The ASMD2018 series provides surface mountresettable overcurrent protection with holding currentfrom 0.3A to 2.0A.This series is suitable for applications with higherholding currant and higher working voltage up to 60V
JDT FUSE | Vmax (Vdc) | Imax (A) | Ihold @25℃ (A) | Itrip @25℃ (A) | Pd typ. (W) | Maximum Time To Trip | Resistance | ||
Current (A) | Time (Sec.) | Rimin (Ω) | R1max (Ω) | ||||||
ASMD2018-030 | 60 | 100 | 0.30 | 0.60 | 0.9 | 1.5 | 3.00 | 0.50 | 2.30 |
ASMD2018-050 | 60 | 100 | 0.55 | 1.20 | 1.0 | 2.5 | 3.00 | 0.20 | 1.00 |
ASMD2018-075 | 60 | 100 | 0.75 | 1.50 | 1.1 | 8.0 | 0.30 | 0.11 | 0.63 |
ASMD2018-100 | 15 | 100 | 1.10 | 2.20 | 1.1 | 8.0 | 0.40 | 0.06 | 0.36 |
ASMD2018-100-33V | 33 | 100 | 1.10 | 2.20 | 1.1 | 8.0 | 0.40 | 0.06 | 0.36 |
ASMD2018-150 | 15 | 100 | 1.50 | 3.00 | 1.1 | 8.0 | 0.80 | 0.05 | 0.17 |
ASMD2018-200 | 10 | 100 | 2.00 | 4.00 | 1.1 | 8.0 | 2.40 | 0.03 | 0.10 |
Model | A | B | C | D | E | |||
Min. | Max. | Min. | Max. | Min. | Max. | Min. | Min. | |
| ASMD2018-030 | 4.72 | 5.44 | 4.22 | 4.93 | 0.50 | 1.50 | 0.30 | 0.25 |
| ASMD2018-050 | 4.72 | 5.44 | 4.22 | 4.93 | 0.50 | 1.50 | 0.30 | 0.25 |
| ASMD2018-075 | 4.72 | 5.44 | 4.22 | 4.93 | 0.50 | 1.50 | 0.30 | 0.25 |
| ASMD2018-100 | 4.72 | 5.44 | 4.22 | 4.93 | 0.50 | 1.50 | 0.30 | 0.25 |
| ASMD2018-100-33V | 4.72 | 5.44 | 4.22 | 4.93 | 0.50 | 1.50 | 0.30 | 0.25 |
| ASMD2018-150 | 4.72 | 5.44 | 4.22 | 4.93 | 0.50 | 1.50 | 0.30 | 0.25 |
| ASMD2018-200 | 4.72 | 5.44 | 4.22 | 4.93 | 0.50 | 1.50 | 0.30 | 0.25 |
