0466 series Fast-acting SMF

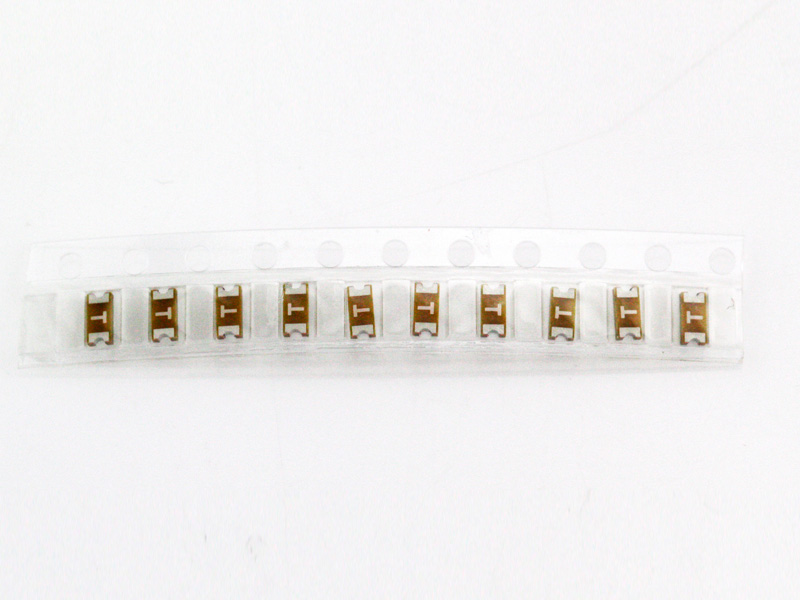

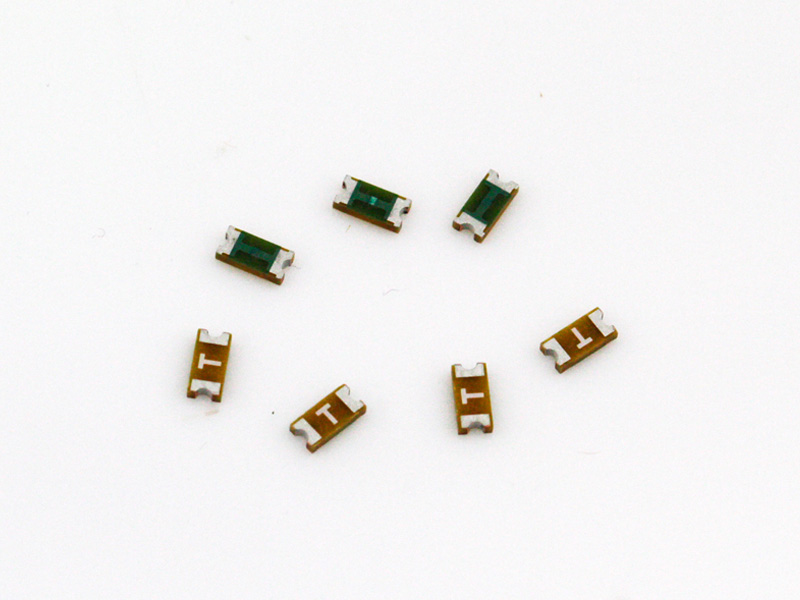

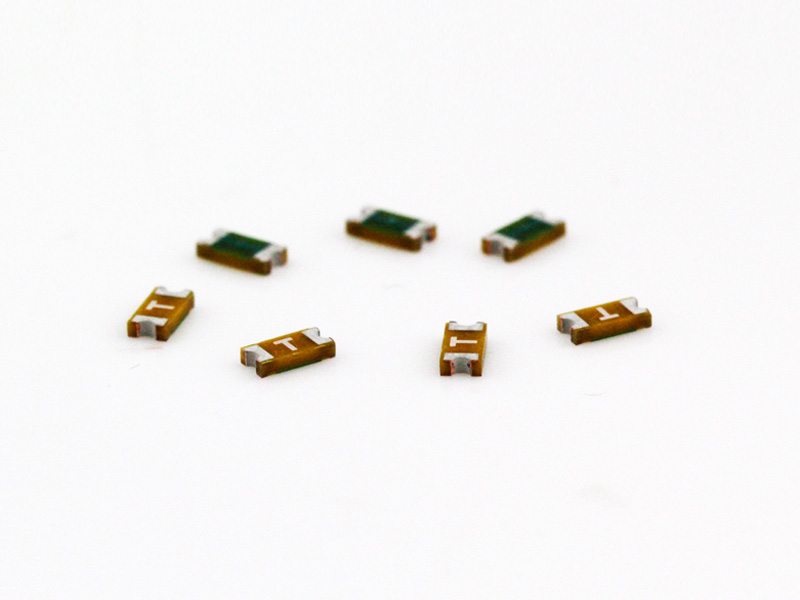

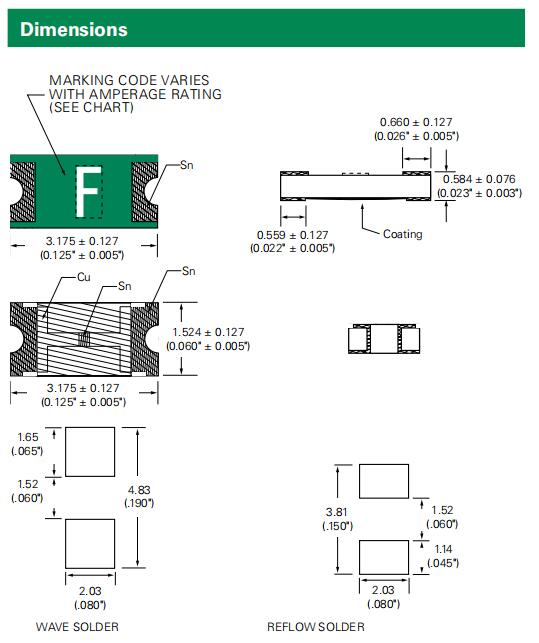

The 466 Series Fast-Acting Surface Mount Fuse (SMF) is a small (1206 size) thin-film device.
- Brand： Littelfuse
- Classification： SMD Fuse
- Voltage： 32V,63V,125V
- Current： 0.125A~5A
Description:
The 466 Series Fast-Acting Surface Mount Fuse (SMF) is a small (1206 size) thin-film device designed for secondary protection of circuits used in space constrained applications such as hand-held portable electronic devices.
This series is 100% lead-free and meets the requirements of the RoHS directive. New Halogen-Free 466 Series fuses are available to order using the "HF" suffix. See Part Numbering section for additional information.
Features:
? Product is compatible with lead-free solders and higher temperature profiles
? Product is marked on top surface with code to allow amperage rating identification without testing
? Low profile for height sensitive applications
? Flat top surface for pickand-place operations
? Element-covering material is resistant to industry standard cleaning operations
? Lead-free, Halogen-free and RoHS compliant
Applications:
Secondary protection for space constrained applications:
? Cell phones | ? Battery packs |
? Digital cameras | ? DVD players |
? Hard disk drives |
Model | Ampere Rating (A) | Amp Code | Max Voltage Rating (V) | Interrupting Rating | Nominal Code Resistance (Ohms) | Nominal Melting I2t (A2sec) | Nom Voltage Drop (mV) | Nom Power Dissipation (W) |
0466.125NRHF | 0.125 | .125 | 125 | 50A @125V AC/DC | 4.000 | 0.00040 | 552.66 | 0.0691 |
0466.200NRHF | 0.200 | .200 | 125 | 1.160 | 0.00055 | 254.28 | 0.0509 | |
0466.250NRHF | 0.250 | .250 | 125 | 0.710 | 0.0010 | 207.01 | 0.0518 | |
0466.375NRHF | 0.375 | .375 | 125 | 0.350 | 0.0028 | 169.18 | 0.0634 | |
0466.500NRHF | 0.500 | .500 | 63 | 50A @63V AC/DC | 0.248 | 0.0060 | 158.47 | 0.0792 |
0466.750NRHF | 0.750 | .750 | 63 | 0.111 | 0.0276 | 98.65 | 0.0740 | |
0466001.NRHF | 1.00 | 001. | 63 | 0.076 | 0.0423 | 89.94 | 0.0899 | |
046601.25NRHF | 1.25 | 1.25 | 63 | 0.059 | 0.0640 | 85.71 | 0.1071 | |
046601.5NRHF | 1.50 | 01.5 | 63 | 0.048 | 0.1103 | 82.97 | 0.1244 | |
046601.75NRHF | 1.75 | 1.75 | 63 | 0.039 | 0.1323 | 80.73 | 0.1413 | |
0466002.NRHF | 2.00 | 002. | 63 | 0.031 | 0.2326 | 78.73 | 0.1575 | |
046602.5NRHF | 2.50 | 02.5 | 32 | 50A @32V AC/DC | 0.024 | 0.3516 | 76.99 | 0.1925 |
0466003.NRHF | 3.00 | 003. | 32 | 0.020 | 0.5760 | 75.99 | 0.2280 | |
0466004.NRHF | 4.00 | 004. | 32 | 0.014 | 1.024 | 74.50 | 0.2980 | |
0466005.NRHF | 5.00 | 005. | 32 | 0.011 | 1.600 | 73.75 | 0.3688 |
