0467 series Fast-acting SMF

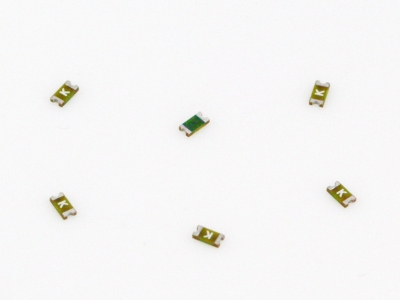

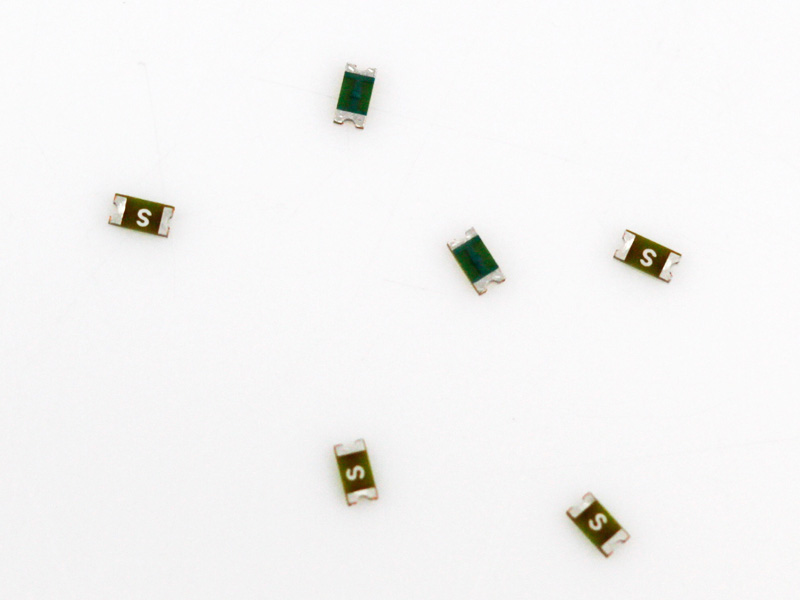

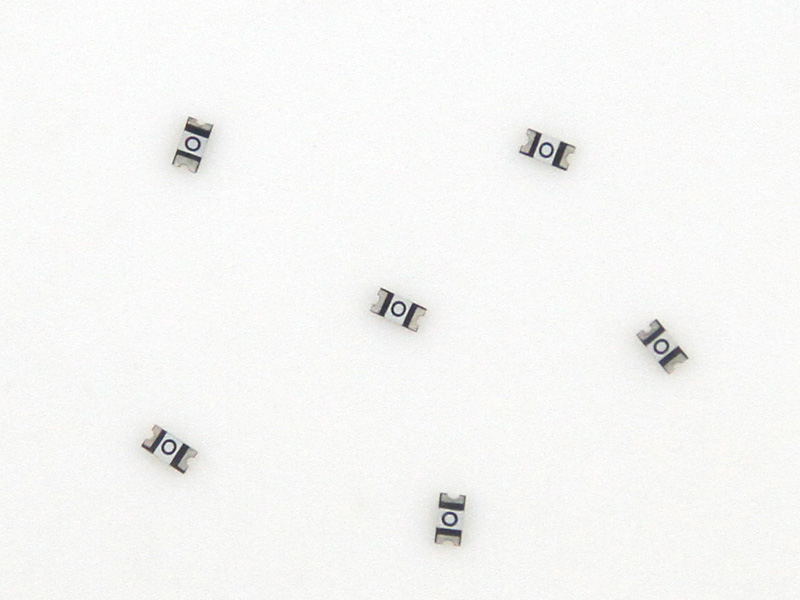

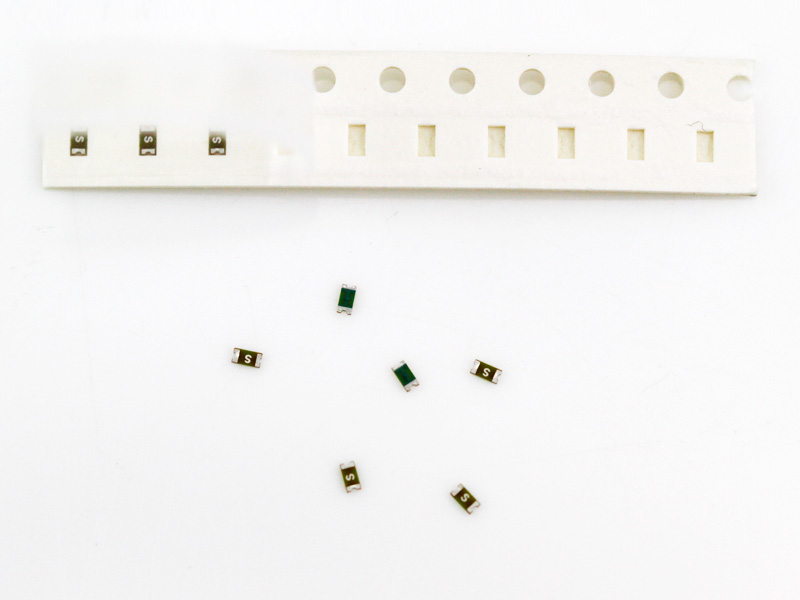

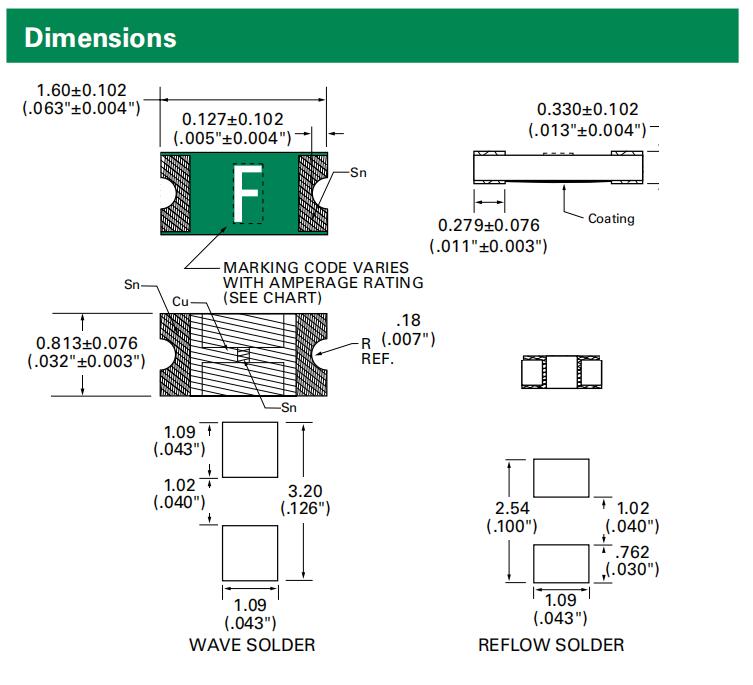

The 467 Series Fast-Acting SMF is an ultra small (0603 size) thin-film device.
- Brand： Littelfuse
- Classification： SMD Fuse
- Voltage： 32V
- Current： 0.25A~5A
Description:
The 467 Series Fast-Acting Surface Mount Fuse (SMF) is an ultra small (0603 size) thin-film device designed for secondary protection of circuits used in space constrained applications such as hand-held portable electronic devices. This series is 100% lead-free and meets the requirements of the RoHS directive. New Halogen-Free 467 Series fuses are available–to order use the “HF” suffix. See Part Numbering section for additional information.
Features:
? Compatible with leadfree solders and higher temperature profiles
? High performance materials provide improved performance in elevated ambient temperature applications
? Marked on top surface with code to allow amp rating identification without testing
? Low profile for height sensitive applications
? Flat top surface for pickand-place operations
? Element covering material is resistant to industry standard cleaning operations
? Mounting pad and electrical performance is identical to Littelfuse 431 and 434 Series products
? Halogen free, Lead-free and RoHS compliant
Applications:
Secondary protection for space constrained applications:
? Cell phones | ? Battery packs |
? Digital cameras | ? DVD players |
? Hard disk drives. |
Part Number | Ampere Rating (A) | Amp Code | Max Voltage Rating (V) | Interrupting Rating | Nominal Code Resistance (Ohms) | Nominal Melting I2t (A2sec) | Nom Voltage Drop (mV) | Nom Power Dissipation (W) |
0467.250NRHF | 0.250 | .250 | 32 | 50A @32V AC/DC | 0.5650 | 0.0014 | 158.56 | 0.0396 |
0467.375NRHF | 0.375 | .375 | 32 | 0.3000 | 0.0035 | 128.03 | 0.0480 | |
0467.500NRHF | 0.500 | .500 | 32 | 0.1870 | 0.0087 | 138.50 | 0.0693 | |
0467.750NRHF | 0.750 | .750 | 32 | 0.1170 | 0.0171 | 123.30 | 0.0925 | |
0467001.NRHF | 1.00 | 001. | 32 | 0.0700 | 0.0212 | 67.40 | 0.0674 | |
04671.25NRHF | 1.25 | 1.25 | 32 | 35A @32V AC/DC | 0.0510 | 0.0518 | 84.32 | 0.1054 |
046701.5NRHF | 1.50 | 01.5 | 32 | 0.0385 | 0.0766 | 71.60 | 0.1074 | |
04671.75NRHF | 1.75 | 1.75 | 32 | 35A @32V AC/DC | 0.0310 | 0.0903 | 78.75 | 0.1378 |
0467002.NRHF | 2.00 | 002. | 32 | 0.0280 | 0.1981 | 78.22 | 0.1564 | |
046702.5NRHF | 2.50 | 02.5 | 32 | 0.0210 | 0.2066 | 76.10 | 0.1903 | |
0467003.NRHF | 3.00 | 003. | 32 | 0.0170 | 0.2403 | 75.04 | 0.2251 | |
046703.5NRHF | 3.50 | 03.5 | 32 | 0.0139 | 0.4306 | 65.30 | 0.2286 | |
0467004.NRHF | 4.00 | 004. | 32 | 0.0118 | 0.8410 | 63.10 | 0.2524 | |
0467005.NRHF | 5.00 | 005. | 32 | 0.0089 | 0.9000 | 61.20 | 0.3060 |
